The TELSEC® CPM acts as a standalone device or integrated into Quest’s OspreyFMS® enterprise software, providing users a comprehensive view and management of critical facilities do not have network connectivity.
The TELSEC CPM is designed to address the monitoring and alarming requirements of critical infrastructure equipment and facilities for multiple markets such as: telecommunications, cable/broadband, electric & water utilities, railroads, oil & gas pipelines, edge computing, industrial, commercial, and multi-residential facilities.
The compact intuitive system provides cellular network connectivity to monitor environmental conditions like temperature, humidity, intrusion, AC & DC power, ATS, generators, fuel level, and other critical systems found in small remote locations such as cell tower sites, microwave sites, repeater sites, 4G/5G small cell poles, and equipment cabinets.

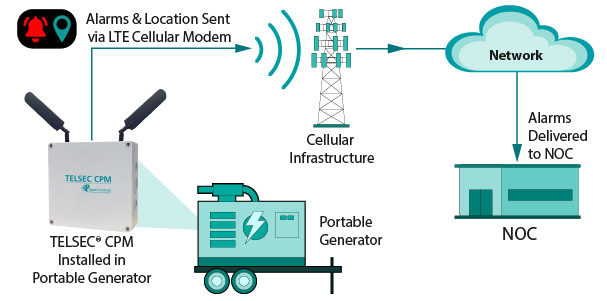

GPS tracking and monitoring of portable generators and other assets
The TELSEC® CPM gives you the ability to track and monitor portable generators in the field from the same platform that oversees your critical infrastructure. Whether your units are powering remote cell sites, in transit, or on standby, you’ll know exactly where each generator is and how it’s performing.
With GPS telemetry built into the TELSEC® CPM, Quest Controls delivers a smarter, more efficient way to manage backup power assets and ensure uptime.
Benefits
- The LTE cellular modem provides remote access to sites that do not have network connectivity
- Incoming power monitoring with power backup allows the system to send a power failure alarm and then a power restored notification
- Eliminates downtime by acting as an Early Warning System
- Reduce truck rolls to remote sites
- Simple to install & program
- Can be configured through a web browser config file upload
- Real-time view of your facility and critical equipment
- GPS tracking and monitoring of portable generators and other mobile assets for complete field visibility
Features
- LTE cellular modem for remote communications and alarming
- Backup power option to remain alive when incoming power is lost
- Ten universal inputs
- Ethernet communications with support for IPv6, IPv4, HTTP, HTTPS, RADIUS Password Authentication, SSH, Telnet, TL1 and SMTP (Email)
- SNMP v1, v2c and v3, for gets, sets, traps, and informs
- LTE cellular connection provides access to devices connected to the CPM's southbound Ethernet port
- Compact package allows for wall or shelf mounting
Specifications
Part number: 151102
Inputs: ten universal inputs supporting 0-5 VDC, 4-20 mA, thermistors, and contact closures. Plus, an additional input to monitor presence of incoming power
Network interface: Ethernet 10/100 Base-T for configuration and to allow cellular access to an external Ethernet enabled device
Optional 4G LTE Cat 4 Modem: (PN 301046) featuring multi-carrier support and GPS tracking
Protocols supported: IPv6, IPv4, HTTP, HTTPS, RADIUS Password Authentication, NTP, SMTP (email), SSHv2, Telnet, TL1, SNMP v1, v2c and v3 for gets, sets, traps and informs
Alarm destinations: SNMP trap servers and email recipients
I/O terminal: removable screw terminals
Power: 24VAC, 24-48 VDC, 3.7 W max.
Backup power: rechargeable super caps retain operation for approx. 5 mins.
Temperature sensor accuracy: ±1°F
Ambient operating temperature: -40° to 167°F (-40° to 75°C), 0-95% RH non-condensing
Dimensions: 7.17 L x 7.09 W x 2.42 D in. (182 x 180 x 61 mm)
Weight: 1.5 lb. (680 g)
Warranty: one year
Specifications subject to change without notice
